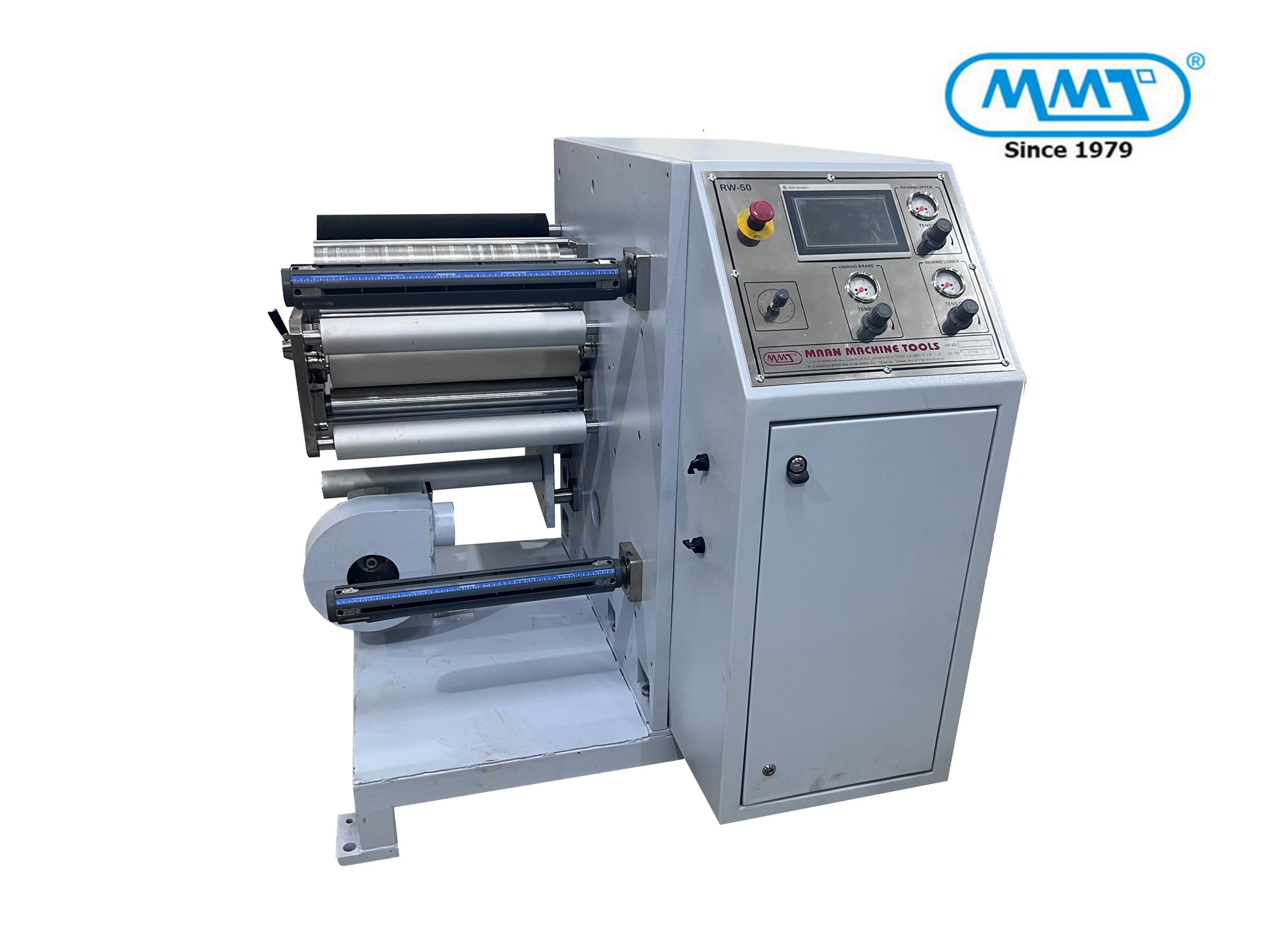

Maan Machine Tools- RW-50

Model: RW-50

Model	RW-50
Max Web Width	500 mm / 20"
Unwind Max. Dia.	600 mm / 24"
Rewind Max. Dia.	600 mm / 24"
Min. Slitting Width	25 mm
Min Material thickness	40 micron
Speed	400 Mtrs I Min.
Speed	65 M/Min
Upgraded air shafts at unwind / rewind with centralized air supply mechanism which requires no air gun
Unwind Core Dia.	3"
Rewind Core Dia.	3"
Ac Drive Main	5hp / 3.75kW
Ac Brake Motor	5hp / 3.75kWx 1 nos
Waste Trim Blower	0.5 hp / 0.37kW
Free margin Control	By using web Edge Guide System
Touch Screen Interface for easy Operations
Touch Screen and PLC by Allen Bradley	Manually by using Pneumatic Brake System
Rewind Tension Control	Manually by using Pneumatic Clutch System
Air Requirements	6-8 Bars.
Power Requirements	415Vac 3-Phase ( 4.5 kW )
Weight	Approx 600 kgs (approx)
Machine Dimensions (in Inch)	56 (L) x 66 (W) x 53 (H)
